RoXDrive: Closed-Loop Reinforcement Learning for End-to-End Autonomous Driving via Action-Faithful Rollouts

Hongbin Lin¹Chaoda Zheng²Yiming Yang¹Xiangyu Li²Shijia Chen²Jinhao Deng²Kangjie Chen²

Dongbin Zhang²Jie Feng³Yu Zhang²Xianming Liu²Shuguang Cui¹Boyang Wang²Zhen Li¹

¹ The Chinese University of Hong Kong Shenzhen (cuhk.edu.cn)² XPeng Motors (xpeng.com)³ Xi'an University of Electronic Science and Technology (xidian.edu.cn)

Paper Code

RoXDrive Demo

For efficient web delivery, these videos use the compressed versions.

Qualitative Visualization

Public Benchmark

nuScenes

Public nuScenes · Original vs RoXDrive.

Avoid Collision

Original official weights vs RoXDrive · 4 s

Scaling Study

In-House Driving Data

Closed-loop comparisons across challenging in-house driving scenes.

Collision Avoidance

Safe responses to dynamic obstacles and collision risks.

Avoid Collision

Original policy vs RL post-training · 6 synchronized views

Keep in Drivable Area

Lane-boundary awareness and recovery within the drivable region.

Keep in Drivable Area

Original policy vs RL post-training · 6 synchronized views

TL;DR

We introduce RoXDrive, a plug-and-play closed-loop RL framework that enables reliable policy optimization through action-faithful world-model rollouts. RoXDrive consists of two stages:

1
Model pre-training
Alongside imitation pre-training, the Action-Vision Faithfulness Evaluator uses geometry-aware trajectory supervision to verify long-horizon action-vision consistency.
2
Action-faithful RL post-training
With a fixed world model, only action-faithful long-horizon rollouts receive dense safety-aware scoring for scene-level closed-loop RL.

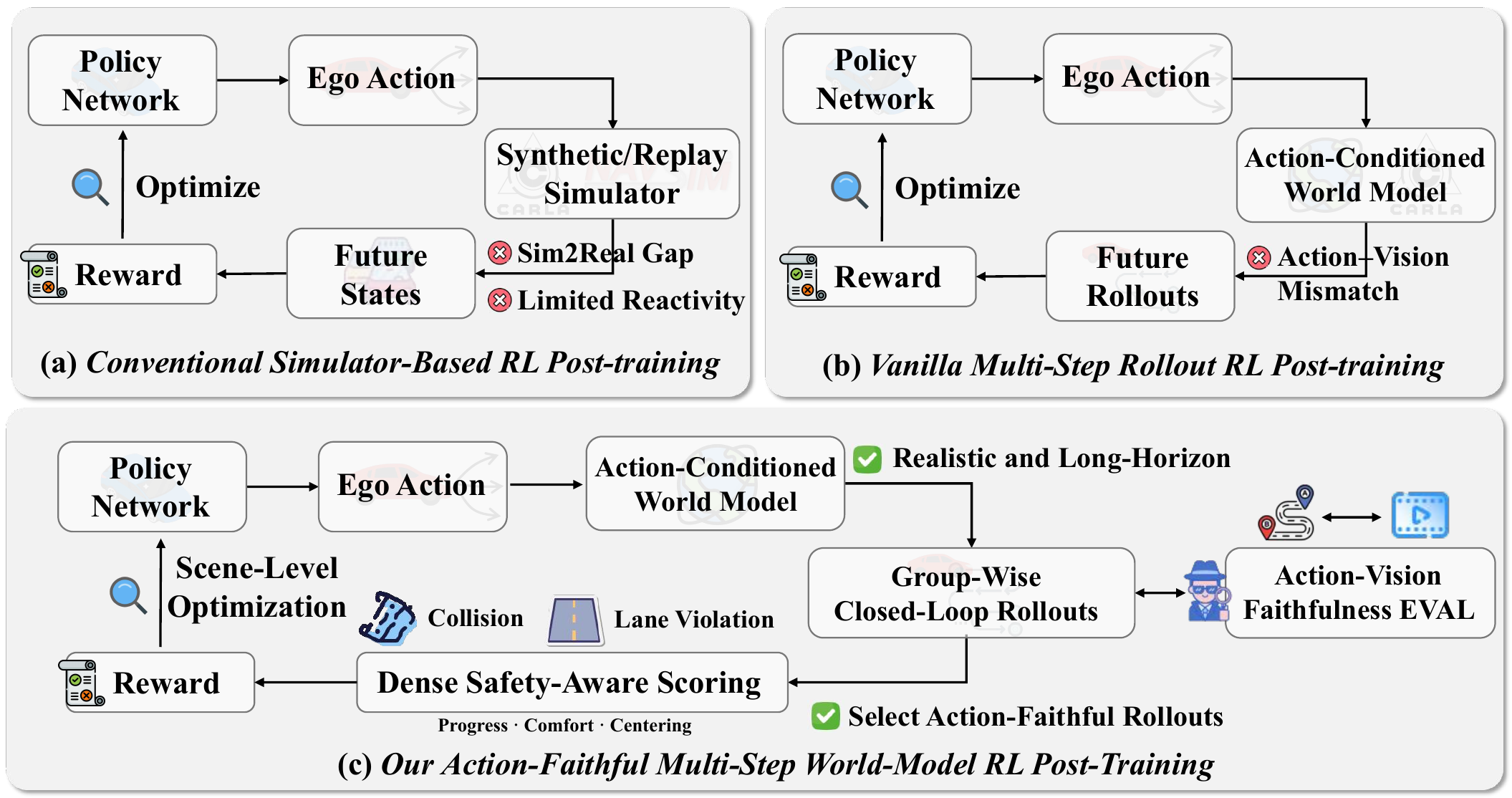

Comparison of conventional simulator-based reinforcement learning, vanilla multi-step world-model rollouts, and RoXDrive action-faithful closed-loop reinforcement learning — RoXDrive selects realistic, long-horizon, action-faithful rollouts for dense safety-aware scoring and scene-level policy optimization.

Motivation

Video world models are promising scalable simulators for closed-loop policy learning, but visual realism alone does not guarantee that future observations causally follow the policy's ego actions.

Fine-tuning only marginally reduces relative-motion errors; small inverse-dynamics inaccuracies still accumulate into jitter and long-horizon drift, making rollouts unreliable for policy optimization.

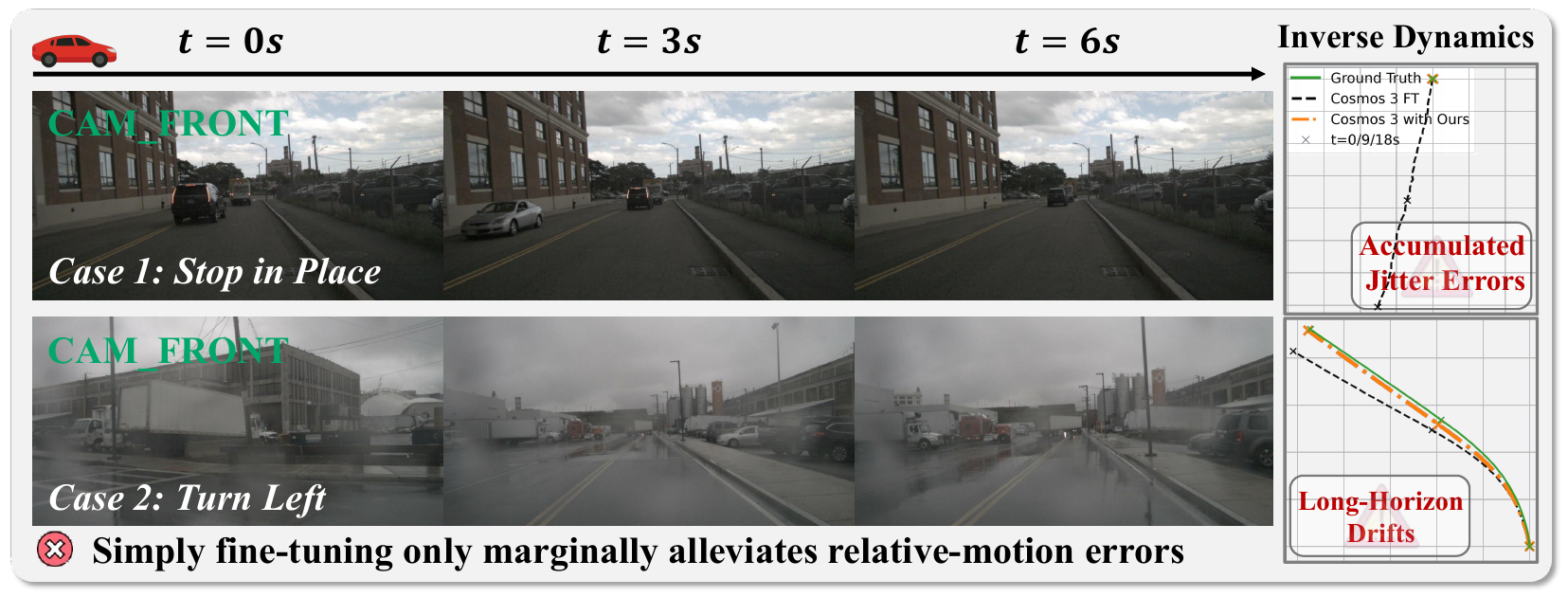

Motivation examples showing accumulated jitter errors and long-horizon drift in fine-tuned video world-model rollouts

Method

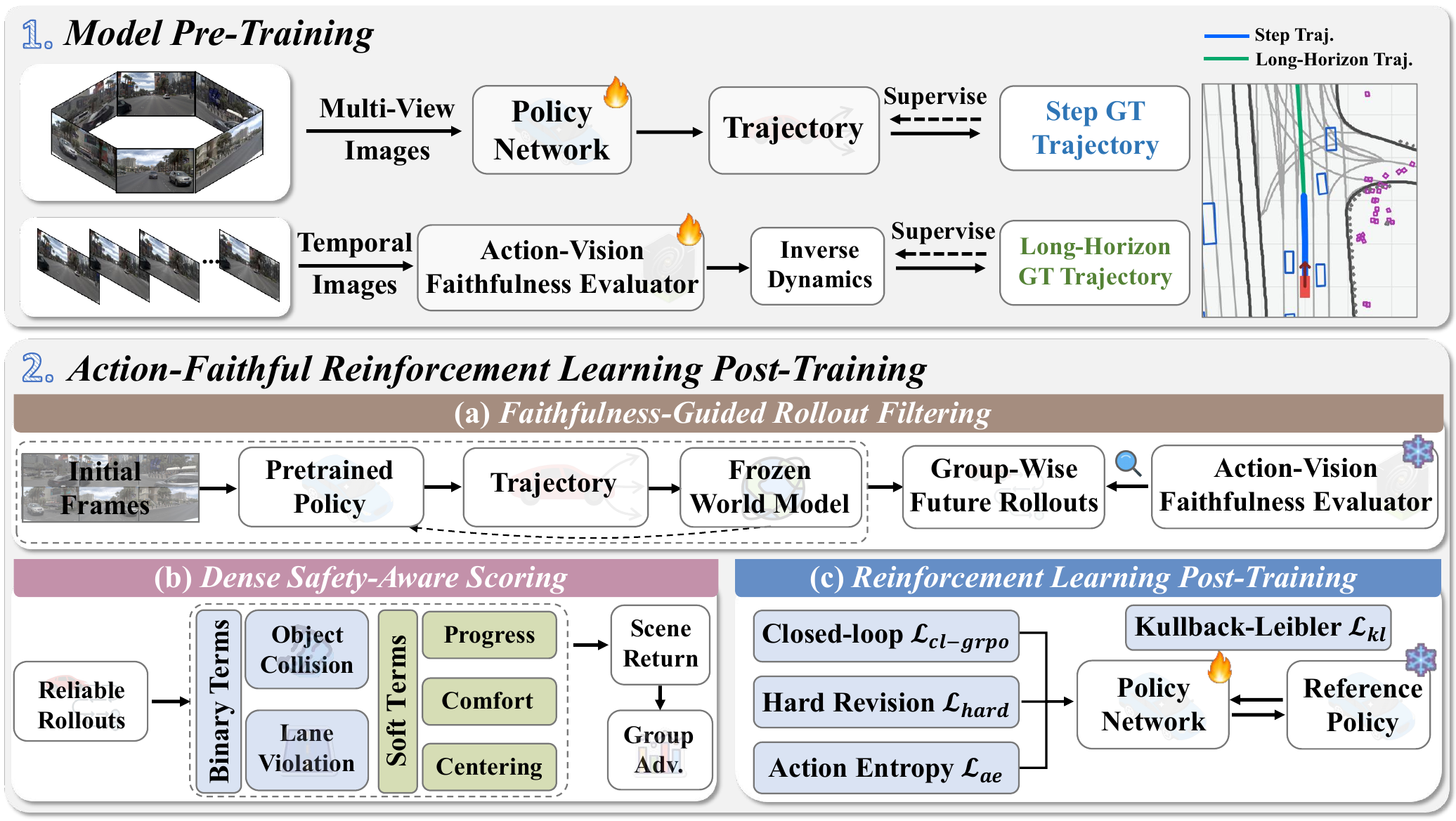

RoXDrive model pre-training and action-faithful reinforcement learning post-training pipeline

Illustration of RoXDrive. 1) Model pre-training (top): Beyond policy pre-training, we train the action-vision faithfulness evaluator (AVFE) with our geometry-aware auxiliary trajectory supervision. 2) Action-faithful RL post-training (bottom): Given the initial scene, agents iteratively interact with a frozen world model to form long-horizon scene rollouts, retaining only action-faithful ones via AVFE for dense safety-aware scoring and scene-level closed-loop RL post-training.

Quantitative Results

Open-loop collision rates (2 s) and closed-loop evaluation on 4,675 nuScenes clips (4 s, two action steps).

Method	RL	Col. 1s ↓	Col. 2s ↓	Col. Avg. ↓	Obj. Col. ↓	Lane Viol. ↓	Progress ↑	Comfort ↑	Clearance ↑	Driving Score ↑
ST-P3	×	0.23	0.62	0.43	268	557	0.397	0.425	0.387	0.341
VAD	×	0.07	0.17	0.12	820	824	0.255	0.681	0.418	0.271
UniAD	×	0.62	0.58	0.60	348	870	0.408	0.805	0.415	0.430
CLEAR‡	✓	0.11	0.23	0.17	—	—	—	—	—	—
Drive-r1‡	✓	0.02	0.06	0.04	—	—	—	—	—	—
DiffusionDrive	×	0.068	0.073	0.070	266	772	0.694	0.866	0.392	0.526
DiffusionDrive + RoXDrive	✓	0.029	0.063	0.046	189	562	0.717	0.883	0.380	0.588
SparseDrive	×	0.000	0.044	0.022	197	623	0.716	0.891	0.384	0.580
SparseDrive + RoXDrive	✓	0.000	0.015	0.007	173	598	0.775	0.922	0.388	0.622

Citation

@misc{lin2026roxdrive,
  title     = {RoXDrive: Closed-Loop Reinforcement Learning for End-to-End Autonomous Driving via Action-Faithful Rollouts},
  author    = {Hongbin Lin and Chaoda Zheng and Yiming Yang and Xiangyu Li and Shijia Chen and Jinhao Deng and Kangjie Chen and Dongbin Zhang and Jie Feng and Yu Zhang and Xianming Liu and Shuguang Cui and Boyang Wang and Zhen Li},
  year      = {2026}
}
